Connecting measurement for HAKE-sprayballs

DIN 11850, Row 2 • Material 1.4571 & 1.4435

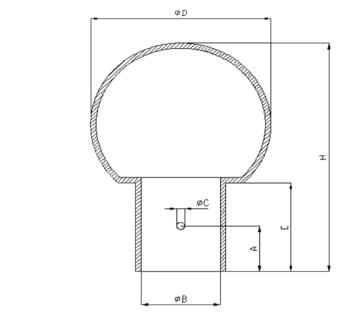

Overview of the connecting dimension
(indicated in mm)

DN A B C D E H B
(not available with IG)
8 - - - - - - -
10 - - - - - - -
15 9 19.2 2.2 30 18 42 -
20 9 23.2 2.5 40 21 53 -
25 18 29.2 2.8 64 35 90 -
32 18 35.2 2.8 64 35 90 -
40 18 41.2 2.8 64 35 90 -
50* 25 53.2 3.3 90 47.5 121.5 -

*only in 1.4571 available!!!
